Montolit TOPROFILE Tile Profiling Machine
TOPROFILE is Montolits tile beveling machine. This profiling system for ceramics and porcelain tiles & slabs, as well as any natural stone, allows easy profiling of edges, making miter cuts, bevels, chamfers, rounded profiles and half bullnose easily and safely. This is also the right tool to create tile skirting boards.

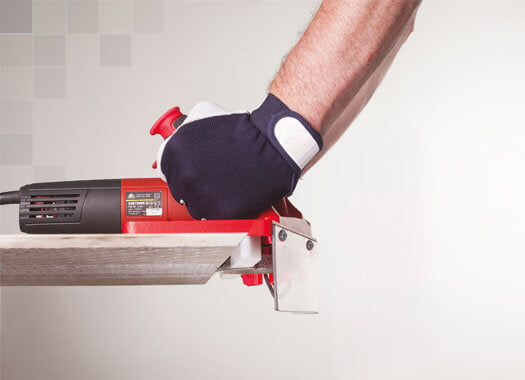

Miter cuts can easily be achieved by putting the beveling machines slide plate (made of scratch-resistant plastic material) on the tile or slab surface, starting the engine and sliding the machine along the edge; when the diamond wheel finishes removing the required material according to the work you want to perform, the operation will be concluded with extreme accuracy.

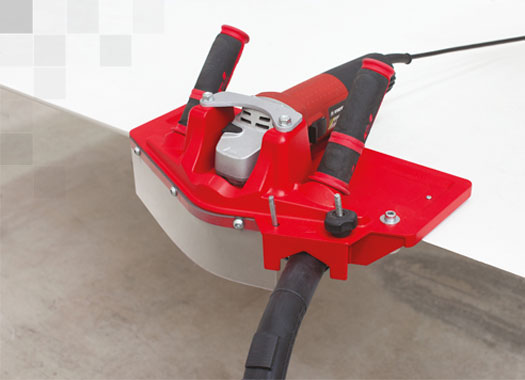

With this tile beveling system there's no limit to tile size or thickness, in fact it is the machine itself that flows along the edge of the material to be shaped, so it doesn't matter whether you're working on a small tile or a large format slab. TOPROFILE does its duty perfectly and with little mess, thanks to the integrated vacuum carried on the crankcase.
The small size and reduced weight of this tile profiling system make it easy to handle and carry. It has been designed as a plug & play, ready for use, beveling machine.

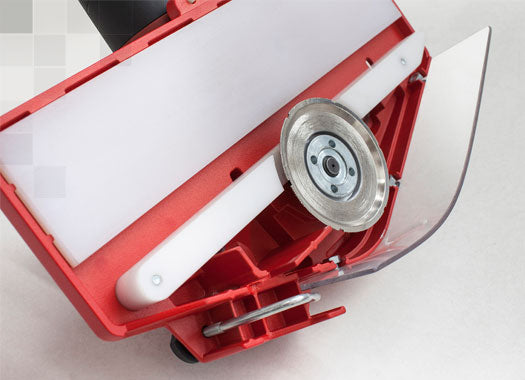

A range of special diamond tools, designed for dry use, are available to accomplish the best miter profile (average and fine diamond grain), as well as bevel (5mm and 3mm) and spokes (3, 5 and 10mm), interchangeable in a few seconds without any need for adjustment.
Summary of characteristics: Ready for use, simple, fast, precise, easy to handle.
Materials: Porcelain stoneware, ceramics, marble, granite.
There is a wide range of diamond tools that can be used with the TOPROFILE tile edge shaping machine.
The following is a technical sheet with information of these tools and the results they allow you to achieve:
