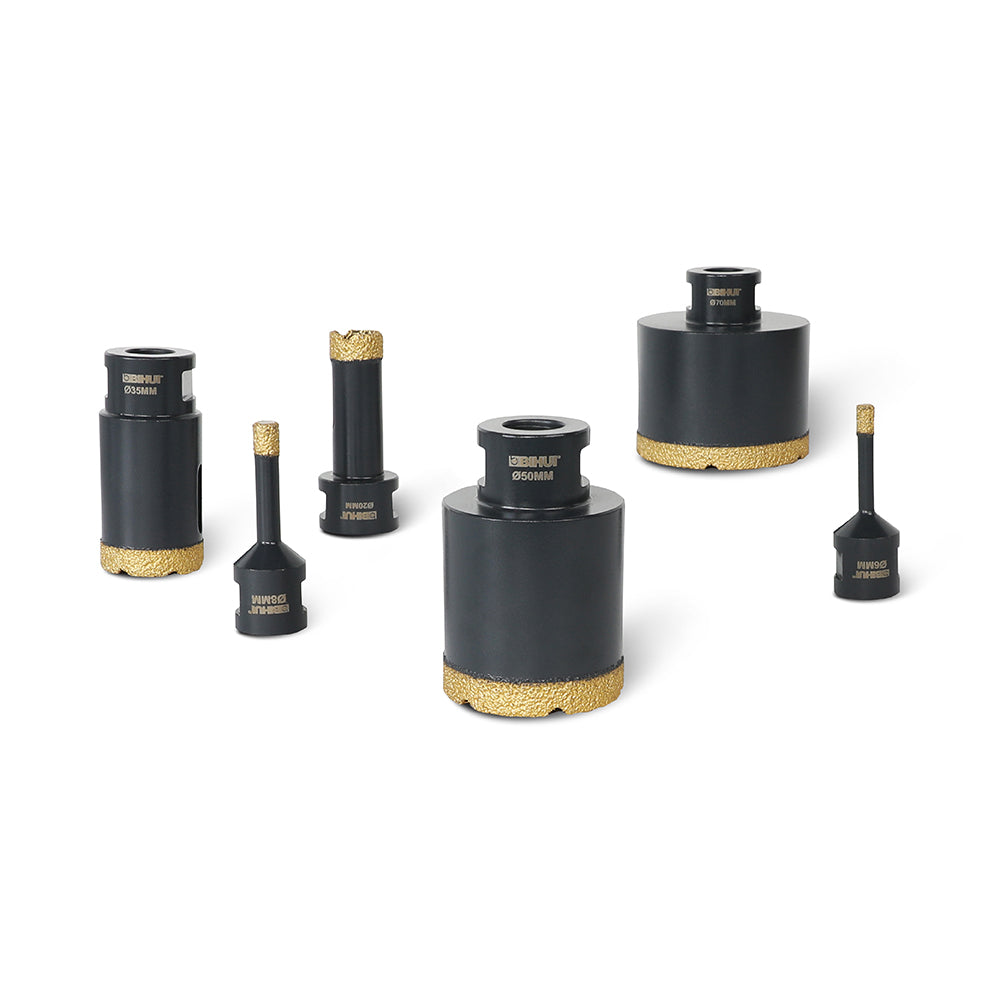

Diamond Core Bit Sizes Explained
Choosing the right diamond core bit sizes is one of the most important parts of drilling porcelain tile, ceramic tile, natural stone, and large-format slabs. Use a bit that's too small and your fixture won't fit. Use one that's too large and you risk unnecessary gaps, extra finishing work, or an unprofessional installation.
Whether you're installing plumbing fixtures, shower valves, drains, electrical penetrations, or decorative accessories, understanding diamond core bit sizes can save time and help you achieve cleaner results.
Why Diamond Core Bit Size Matters
Diamond core bits are designed to create precise holes in hard materials such as porcelain tile, ceramic tile, granite, marble, and stone. Every installation requires a specific hole size depending on the fixture being installed.
Using the correct size helps:
- Create clean, professional-looking installations
- Minimize tile waste
- Reduce the risk of cracking or chipping
- Ensure proper fitment for plumbing and electrical components
- Improve installation speed and efficiency
Professional tile installers often carry multiple diamond core bit sizes to handle a variety of job-site situations.
Small Diamond Core Bit Sizes
These smaller sizes are commonly used for fasteners, mounting hardware, and smaller plumbing penetrations.
1/4" Diamond Core Bit
Ideal for:
- Small screws
- Mounting brackets
- Shower door hardware
- Tile anchors
5/16" Diamond Core Bit
Ideal for:
- Wall anchors
- Accessory mounting
- Light-duty hardware installations
3/8" Diamond Core Bit
Ideal for:
- Grab bar anchors
- Shower accessories
- Small plumbing penetrations
1/2" Diamond Core Bit
Ideal for:
- Water supply lines
- Small fixture installations
- Bathroom hardware
Medium Diamond Core Bit Sizes
These sizes are among the most commonly used by tile professionals.
3/4" Diamond Core Bit
Ideal for:
- Copper water lines
- PEX tubing
- Plumbing penetrations
1-1/8" Diamond Core Bit
Ideal for:
- Larger plumbing lines
- Specialty fixtures
- Electrical conduit installations
1-3/8" Diamond Core Bit
Ideal for:
- Shower arms
- Faucet rough-ins
- Plumbing trim installations
1-3/4" Diamond Core Bit
Ideal for:
- Mixing valves
- Larger fixture penetrations
- Custom plumbing applications
Large Diamond Core Bit Sizes
Large-format installations often require larger holes for drains, valves, and specialty fixtures.
2" Diamond Core Bit
Ideal for:
- Shower drains
- Floor drains
- Larger pipe penetrations
2-3/16" Diamond Core Bit
Ideal for:
- Specialty drain systems
- Large plumbing fixtures
2-3/8" Diamond Core Bit
Ideal for:
- Drain assemblies
- Commercial plumbing applications
2-5/8" Diamond Core Bit
Ideal for:
- Larger drain bodies
- Specialty installations
3" Diamond Core Bit
Ideal for:
- Toilet flange applications
- Large plumbing penetrations
- Commercial construction projects
Extra-Large Diamond Core Bit Sizes
These sizes are typically used for specialized installations and larger utility penetrations.
4" Diamond Core Bit
Ideal for:
- Vent penetrations
- Larger pipe installations
- Commercial tile work
4-1/2" Diamond Core Bit
Ideal for:
- Specialty plumbing openings
- Mechanical penetrations
- Large-format panel work
6" Diamond Core Bit
Ideal for:
- Major utility penetrations
- Commercial applications
- Large-scale construction projects
How to Choose the Right Diamond Core Bit Size
Before drilling, always verify the outside diameter of the pipe, fixture, drain, or component you're installing. The goal is to create enough clearance for installation while keeping the finished appearance clean and professional.
When working with porcelain tile, it's also important to consider:
- Tile thickness
- Material hardness
- Fixture manufacturer recommendations
- Grout and trim allowances
- Waterproofing requirements
A properly sized hole makes installation easier and produces a cleaner finished result.
Professional Diamond Core Bits at Tile ProSource
Tile ProSource carries a complete selection of professional-grade diamond core bits designed for porcelain tile, ceramic tile, natural stone, and large-format installations.
Our Diamond Core Bits collection includes sizes ranging from 1/4" all the way up to 6", making it easy to find the right bit for everything from small hardware installations to large plumbing penetrations.
Whether you're drilling a shower valve, floor drain, plumbing penetration, or electrical opening, having the correct diamond core bit size helps ensure a faster installation and a more professional result.
Frequently Asked Questions
What is the most commonly used diamond core bit size?
For tile installers, 3/4", 1-3/8", and 2" core bits are among the most frequently used sizes because they accommodate many common plumbing and shower fixture installations.
Can one diamond core bit size work for every job?
No. Different fixtures, pipes, and drains require different hole sizes. Most professional installers carry a range of diamond core bit sizes.
What size diamond core bit is used for shower drains?
Many shower drains commonly require a 2" or larger diamond core bit, depending on the drain manufacturer and installation requirements.
Are diamond core bits suitable for porcelain tile?
Yes. Diamond core bits are the preferred choice for drilling porcelain tile because they cut cleanly through dense materials while minimizing chipping and cracking.
