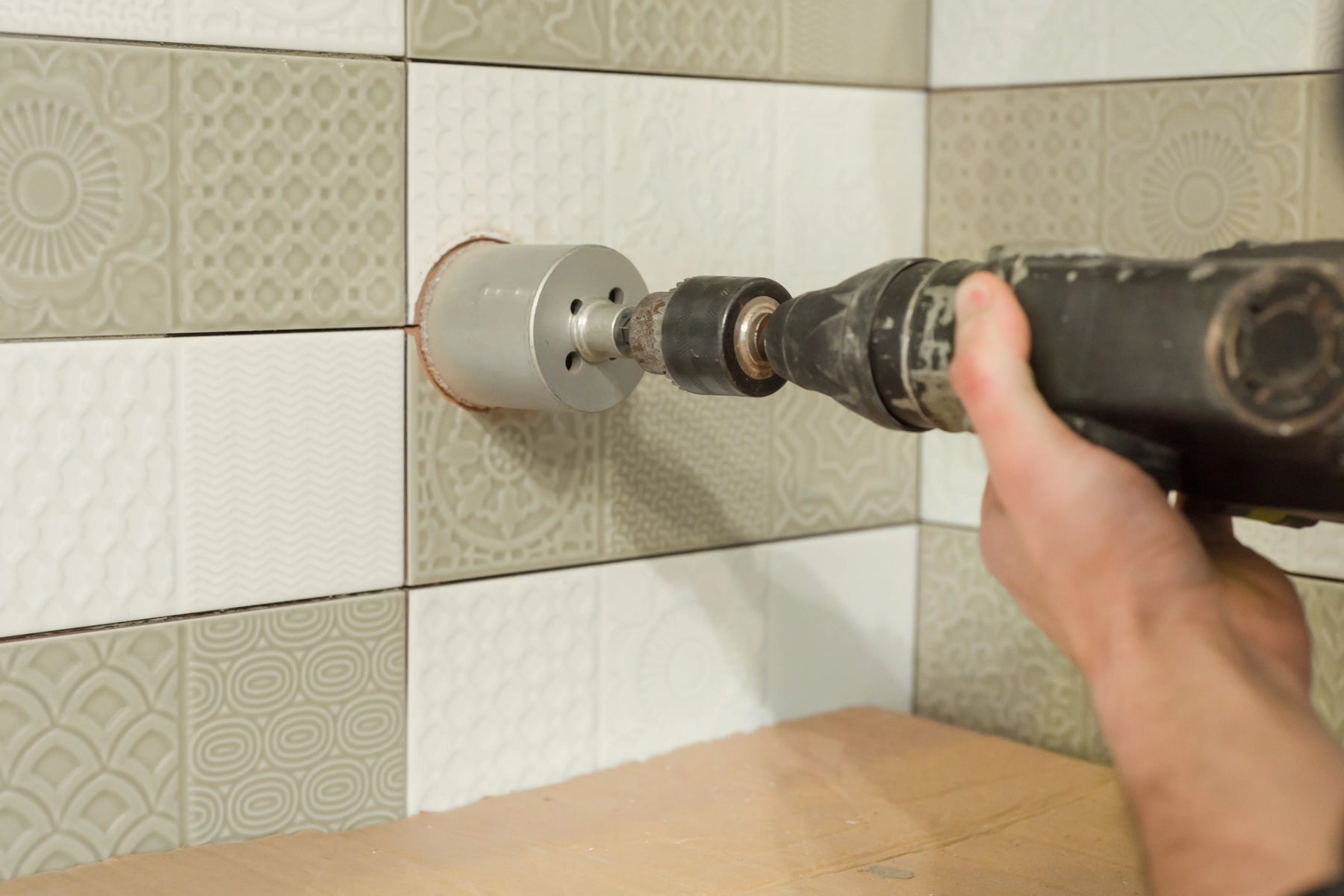

Whether you're installing a shower valve, faucet, toilet flange, or electrical outlet, drilling clean holes through tile is one of the most important steps in any installation. Choosing the wrong cutting tool can lead to chipped tile, cracked porcelain, wasted materials, and unnecessary frustration.

If you're wondering which to use, diamond core bit vs hole saw, the answer depends on the material you're cutting. While both tools create circular holes, they're designed for very different applications. If you're working with porcelain, ceramic, marble, or natural stone, a diamond core bit is almost always the better choice.

In this guide, we'll compare diamond core bits and traditional hole saws, explain when to use each, and help you choose the right tool for your next tile project.

What Is a Diamond Core Bit?

A diamond core bit is a hollow cylindrical drill bit with industrial diamond particles bonded to its cutting edge. Rather than using saw teeth, the diamonds grind through extremely hard materials with precision and minimal chipping.

Diamond core bits are designed for materials such as:

• Porcelain tile
• Ceramic tile
• Marble
• Granite
• Quartz
• Natural stone
• Glass tile

Because diamonds are harder than nearly every building material, they produce smooth, accurate holes while reducing the risk of cracking expensive tile.

What Is a Hole Saw?

A traditional hole saw is a steel cup with serrated teeth that cut material by sawing around the edge of the hole.

Hole saws work exceptionally well for:

• Wood
• Drywall
• PVC
• Plastic
• Soft metals
• Plywood

While carbide hole saws exist for harder materials, standard toothed hole saws struggle with porcelain tile because the teeth cannot effectively cut the extremely dense surface.

Diamond Core Bit vs Hole Saw: Side-by-Side Comparison

For tile installations, diamond core bits clearly outperform traditional hole saws.

Why Diamond Core Bits Work Better on Tile

Porcelain tile is fired at extremely high temperatures, creating one of the hardest surfaces found in residential construction.

Instead of trying to "cut" this surface like a saw blade, diamond core bits gradually grind away the material.

This provides several advantages:

• Cleaner hole edges
• Less vibration
• Reduced chipping
• Lower chance of cracking the tile
• Better accuracy
• Longer tool life

These benefits become even more important when working with expensive large-format porcelain tiles.

When Should You Use a Hole Saw Instead?

Hole saws still have an important place in every contractor's toolbox.

Choose a traditional hole saw when drilling:

• Wood studs
• Cabinet panels
• Drywall
• PVC pipe
• Plastic
• Composite materials

They're faster, less expensive, and specifically designed for softer materials.

However, once tile enters the equation, especially porcelain, switching to a diamond core bit is the smarter investment.

Can You Use a Hole Saw on Porcelain Tile?

Technically, yes, but it's rarely recommended.

A carbide hole saw may eventually cut porcelain, but it often:

• Overheats quickly
• Chips the glaze
• Requires excessive pressure
• Wears out much faster
• Produces rough hole edges

Most professional tile installers skip this frustration altogether by using diamond core bits designed specifically for porcelain.

Choosing the Right Diamond Core Bit

Not all diamond core bits are created equal.

When selecting one, consider:

Hole Diameter

Choose the size based on what you're installing.

Common applications include:

• Plumbing supply lines
• Shower valves
• Toilet flanges
• Electrical outlets
• Pipe penetrations

Dry vs Wet Drilling

Many modern premium diamond core bits are designed for dry drilling with an angle grinder, making them ideal for jobsite efficiency.

Wet-cutting models provide additional cooling and can extend bit life during repetitive drilling.

Diamond Quality

Higher-quality industrial diamonds provide:

• Faster cutting
• Longer lifespan
• Better heat resistance
• Cleaner finishes

Professional-grade bits typically cost more upfront but save money by lasting significantly longer.

Tips for Drilling Tile Successfully

No matter which diamond core bit you choose, following a few best practices will improve your results.

• Start drilling at a slight angle before bringing the bit upright.
• Use light, consistent pressure.
• Let the diamonds do the work.
• Avoid excessive speed or pressure.
• Periodically lift the bit to remove dust and improve cooling.
• Secure the tile whenever possible before drilling.

Patience produces cleaner holes and extends tool life.

Which Tool Is Right for You?

If you're drilling:

Porcelain, Ceramic, Marble, Granite, or Stone

Choose a diamond core bit.

You'll achieve:

• Cleaner holes
• Faster drilling
• Less tile damage
• Better professional results

Wood, Drywall, Plastic, or PVC

Choose a traditional hole saw.

They're faster and more economical for softer building materials.
