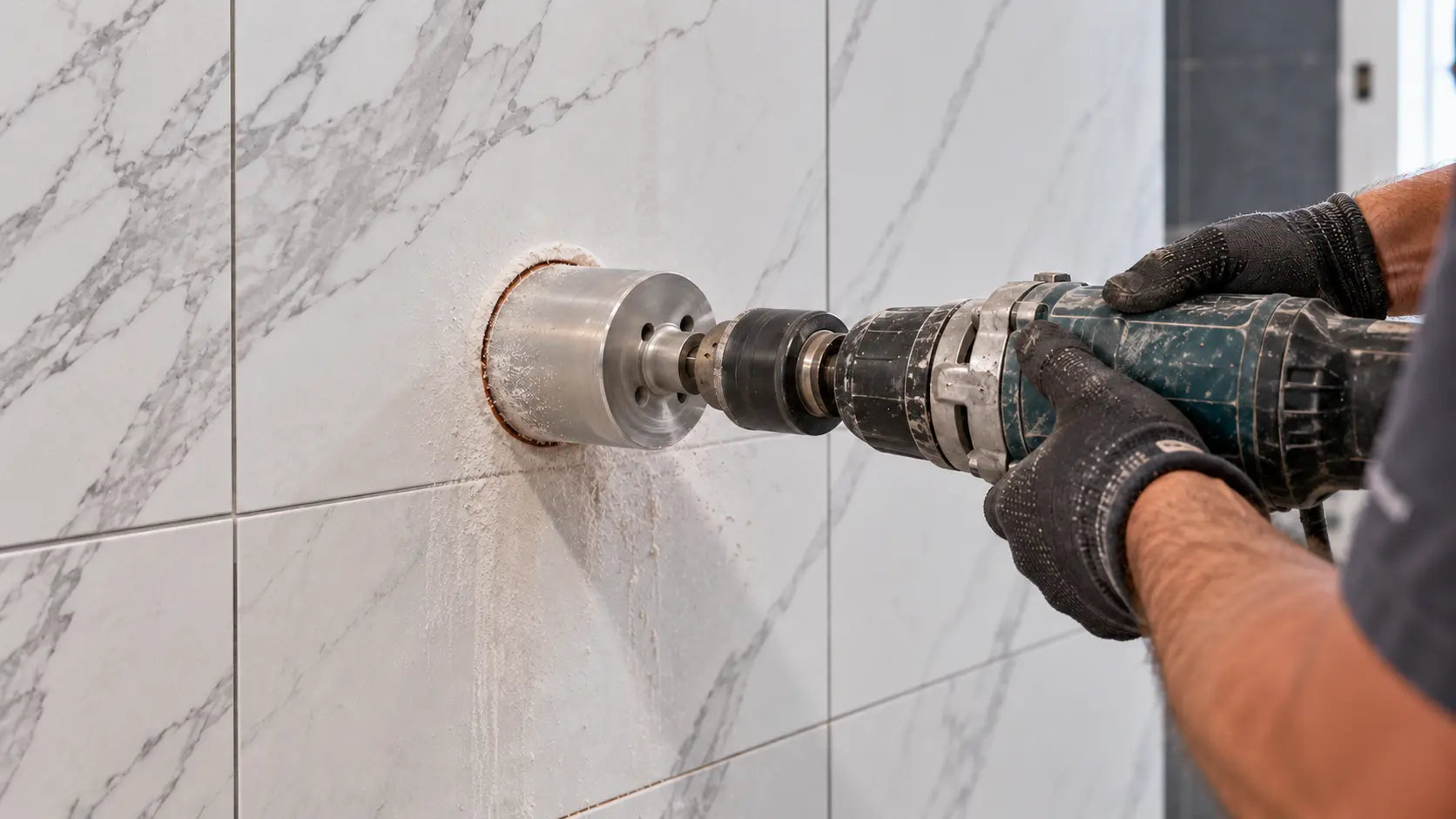

Drilling a small hole in tile is one thing. Creating a large opening for a shower valve, plumbing pipe, drain, or other fixture requires the right equipment and technique, especially when you're working with dense porcelain.

If you need to drill large holes in porcelain tile, a diamond core bit is one of the most effective tools for the job. Instead of aggressively cutting the tile with teeth, the diamond edge grinds through the porcelain, allowing you to create a controlled, accurate opening while reducing the chance of chips and cracks.

Below, we'll walk through how professional tile installers approach larger holes and what you can do to get cleaner results.

Why Is Porcelain Tile Difficult to Drill?

Porcelain is extremely dense and hard. That's one of the reasons it's such a popular material for floors, showers, and other high-use areas, but those same characteristics make drilling more challenging.

Using the wrong bit or applying too much pressure can result in:

• Chipped edges
• Cracked tile
• Excessive heat
• Slow drilling
• Premature bit wear
• An opening that's difficult to position accurately

For large penetrations, these problems become even more noticeable because more material needs to be removed.

Use a Diamond Core Bit for Large Porcelain Tile Holes

For circular openings in porcelain, professional installers commonly turn to a diamond core bit.

Diamond core bits have a hollow center and a diamond cutting edge that grinds through the tile around the perimeter of the opening. This makes them particularly useful for larger holes where accuracy and edge quality matter.

They're commonly used to create openings for:

• Shower valves
• Faucet and plumbing connections
• Water supply lines
• Pipes
• Drains
• Electrical penetrations
• Other bathroom and kitchen fixtures

The key is choosing a core bit diameter that provides enough clearance for the pipe or fixture without making the opening unnecessarily large.

How to Drill Large Holes in Porcelain Tile

1. Measure and Mark the Hole

Accurate layout comes first.

Determine the center of the required opening and carefully mark its location. Double-check the measurements against the plumbing or fixture before drilling.

With expensive porcelain tile, taking another minute to verify your measurements can prevent wasting an entire piece.

2. Select the Correct Diamond Core Bit

Match the diameter of your diamond core bit to the opening required for the installation.

Don't automatically choose the tightest possible fit. Plumbing penetrations and fixtures may require some clearance, while the finished escutcheon or trim plate will typically cover the opening.

Always confirm the required dimensions before cutting.

3. Secure and Support the Tile

If you're drilling the tile before installation, place it on a stable, properly supported work surface.

You don't want the tile flexing, vibrating, or shifting while the bit is cutting.

For large-format porcelain, adequate support is particularly important because stress placed on an unsupported section can contribute to cracking.

4. Start the Core Bit Carefully

Many diamond core bits don't have a conventional pilot bit in the center. That means placing the entire cutting edge flat against the porcelain immediately can make the bit difficult to control.

A common technique is to begin with the core bit at a slight angle so only a small portion of the diamond edge contacts the surface.

Once you've established a shallow groove, gradually bring the tool upright and continue cutting around the full circumference.

A drilling guide can also help maintain the exact position when starting the hole.

5. Let the Diamonds Do the Cutting

One of the biggest mistakes when drilling porcelain is applying excessive force.

More pressure doesn't necessarily mean faster cutting.

Use steady, controlled pressure and allow the diamond abrasive to grind through the material. Forcing the tool can generate additional heat and make it harder to maintain control.

6. Manage Heat While Drilling

Heat is an enemy of both porcelain and diamond tooling.

Depending on the specific core bit, it may be designed for wet or dry use. Always follow the manufacturer's instructions for that particular tool.

When using a dry-rated bit, periodically backing the bit away from the tile can help clear debris and prevent excessive heat buildup.

Wet drilling uses water to cool the cutting area and control debris, but requires tools and bits intended for that process.

How to Avoid Cracking Porcelain Tile

Technique becomes increasingly important as the hole diameter increases.

Keep these practices in mind:

• Don't rush the cut.
• Avoid excessive downward pressure.
• Keep the tool controlled and stable.
• Make sure loose tile is adequately supported.
• Don't allow the core bit to overheat.
• Use a quality diamond bit designed for porcelain.
• Confirm your measurements before drilling.
• Follow the recommended speed and wet/dry instructions for your specific bit.

A clean hole is the result of controlled cutting, not brute force.

Can You Drill Porcelain Tile After It's Installed?

Yes, large holes can also be drilled after porcelain tile has been installed, but the stakes are higher.

You need to know what's behind the tile before drilling. Plumbing, electrical wiring, waterproofing systems, and other building components may be located directly behind the surface.

The tile also can't be repositioned if your measurements are wrong.

Careful layout and controlled drilling are especially important when working on an already-finished wall or floor.

Diamond Core Bit vs. Standard Hole Saw

A traditional toothed hole saw is primarily designed for materials such as wood, drywall, and certain plastics or metals. Dense porcelain requires a different cutting approach.

Diamond core bits grind through the surface rather than relying on conventional saw teeth, making them better suited for porcelain, ceramic, and many natural stone applications.

For professional tile installation, using tooling designed specifically for the material can improve cutting speed, edge quality, and consistency.

What If the Porcelain Hole Needs to Be Slightly Larger?

Sometimes the opening is almost perfect but needs a little additional clearance.

Rather than attempting to force a pipe or fixture through an undersized hole, installers can use appropriate diamond shaping or enlargement tools to carefully remove material from the edge.

This is especially helpful when plumbing doesn't line up exactly as expected or only a small amount of additional clearance is needed.

The goal is to make controlled adjustments without placing unnecessary stress on the porcelain.

Choosing Diamond Core Bits for Professional Tile Installation

Professional installers should consider more than diameter when selecting a core bit.

Look at:

• Material compatibility
• Wet or dry operation
• Recommended tool and RPM
• Diamond quality
• Expected frequency of use
• Available diameters

Contractors drilling porcelain regularly can benefit from maintaining multiple core bit sizes so they're prepared for different plumbing and fixture requirements on the jobsite.

Shop Diamond Core Bits at Tile ProSource

Knowing how to drill large holes in porcelain tile starts with having the right diamond tooling. A quality core bit combined with proper support, careful positioning, controlled pressure, and heat management can make even large openings much more manageable.

Tile ProSource carries professional diamond core bits for porcelain, ceramic, stone, and demanding tile installation applications.

Browse the Diamond Core Bits collection.

Frequently Asked Questions

What is the best tool for drilling large holes in porcelain tile?

A diamond core bit designed for porcelain is an excellent choice for creating large circular openings. The correct diameter depends on the pipe, valve, drain, or fixture being installed.

Can you drill porcelain tile without cracking it?

Yes. Proper tile support, a quality diamond core bit, controlled pressure, accurate positioning, and heat management can significantly reduce the risk of cracking or chipping.

Should you drill porcelain tile wet or dry?

That depends on the diamond core bit. Some bits are designed for dry drilling, while others require water for cooling. Follow the manufacturer's instructions for the specific bit you're using.

How do you start a diamond core bit without it slipping?

When using a core bit without a pilot bit, installers often start at a slight angle to establish a groove before gradually bringing the tool upright. A compatible drilling guide can provide additional control.

Can you make an existing hole in porcelain tile larger?

Yes. Diamond shaping and enlargement tools can be used to carefully remove material from the edge of an existing opening when additional clearance is needed.
