To enlarge tile holes without cracking porcelain, you need the right diamond tools, light pressure, and a controlled approach. Porcelain is one of the hardest and most brittle tile materials, which means even small mistakes can lead to chipping or full cracks.

In this guide, we’ll walk through exactly how to enlarge tile holes safely, what tools to use, and how to get clean, professional results every time.

Why Porcelain Tile Cracks When Enlarging Holes

Porcelain is dense and brittle, which makes it difficult to modify once a hole has already been drilled.

Cracking usually happens because of:

• too much pressure during grinding or drilling
• using the wrong tool instead of diamond milling bits
• overheating the tile
• working too quickly without control
• stress buildup around the hole edge

Avoiding these issues is key to enlarging holes without damaging the tile.

Best Tools to Enlarge Tile Holes

Using the right tools makes all the difference when working with porcelain.

Recommended tools:

• diamond milling bit
• diamond countersink bit (for edge refinement)
• variable speed drill or angle grinder
• diamond core drill bit (for initial hole)
• water source or cooling wax for cooling (recommended)

Explore professional tools here:
Diamond Chamfer Tools Collection

Step-by-Step: How to Enlarge Tile Holes Without Cracking Porcelain

Step 1: Start With a Properly Drilled Hole

Always begin with a clean hole using a diamond core drill bit.

• drill at a low, steady speed
• keep the bit stable
• use water to reduce heat and friction

A clean starting hole reduces stress when enlarging.

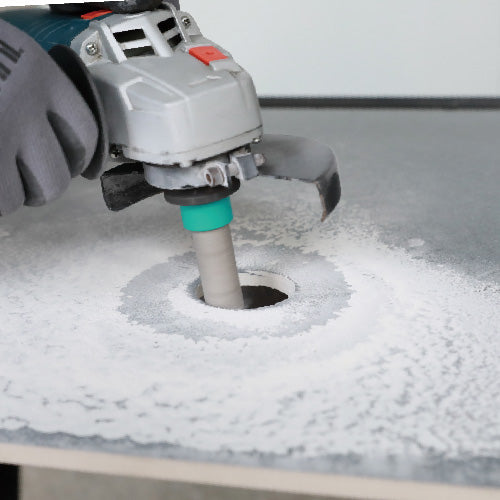

Step 2: Use a Diamond Milling Bit

A diamond milling bit is the best tool for enlarging tile holes.

• designed for shaping and enlarging existing holes
• provides controlled material removal
• reduces the risk of cracking

Never use standard drill bits for this step.

Step 3: Work Slowly Around the Edge

Position the milling bit inside the hole and begin removing material gradually.

• apply light pressure
• move in a circular motion
• keep the tool moving at all times

This prevents stress concentration in one area.

Step 4: Enlarge in Small Increments

Do not try to reach the final size immediately.

• remove small amounts of material at a time
• check sizing frequently
• maintain even pressure around the hole

Gradual enlargement reduces the risk of cracking.

Step 5: Control Heat Buildup

Heat is one of the biggest causes of porcelain failure.

• use water or cooling wax whenever possible
• take breaks between passes
• avoid high RPMs for extended periods

Keeping the tile cool protects its structural integrity.

Step 6: Refine the Edge (Optional but Recommended)

After enlarging the hole, refine the edges using a countersink or chamfer tool.

• smooth out rough edges
• reduce stress points
• improve final appearance

This step is especially important for visible installations.

Pro Tips for Enlarging Tile Holes Safely

• always use diamond tools designed for porcelain
• keep a steady hand and consistent movement
• practice on scrap tile before working on finished pieces
• avoid forcing the tool into the material
• let the tool do the work

Common Mistakes to Avoid

• using standard drill bits instead of milling tools
• applying excessive pressure
• working too fast
• skipping the initial drilled hole
• ignoring heat buildup

Why Proper Hole Enlargement Matters

Taking the time to enlarge tile holes correctly improves both installation quality and durability.

• prevents cracks from spreading
• ensures proper fit for fixtures and hardware
• creates cleaner, more professional results
• reduces the need for costly rework

Final Thoughts

Knowing how to enlarge tile holes without cracking porcelain is a critical skill for any tile installer. With the right tools, proper technique, and a controlled approach, you can safely modify even the hardest materials without damaging them.

Focus on precision, take your time, and always use diamond tools designed for the job. That’s how you achieve clean, reliable results on every project.
