When it comes to professional tile installations, it’s the details that separate good jobs from great ones. Flatness, adhesion, and coverage all matter, and that’s where the tile vibration tool comes in. But do you really need one on every job?

In this guide, we’ll explain what a tile vibration tool does, when it’s essential, and how it can transform your tiling results, especially with today’s increasingly popular large-format tiles.

What Is a Tile Vibration Tool?

A tile vibration tool, also called a vibrating suction cup or tile vibrator, is a power-assisted device designed to:

• Eliminate air pockets beneath tiles

• Ensure proper thinset coverage

• Increase adhesive bond strength

• Level large-format tiles across the substrate

The tool gently vibrates the tile while applying downward pressure, helping the thinset spread evenly underneath. Many models, like the Montolit Battile-Pro and RTC Vibralift, also include suction to securely grip the tile during installation.

Why Air Pockets Are a Big Problem in Tiling

Air gaps under tiles, often referred to as hollow spots, are one of the most common causes of tile failure. These voids can lead to:

• Cracking

• Loosening

• Delamination

• Poor sound insulation

• Reduced heat transfer in radiant floor systems

While careful hand-pressing and back-buttering help, they don’t always achieve full coverage, especially on gauged porcelain tile panels (GPTP) and large-format slabs.

That’s where a tile vibration tool becomes invaluable.

When to Use a Tile Vibration Tool

1. Installing Large-Format Tiles

Any tile larger than 12"x24" should be vibrated into place to ensure even bedding. The larger the tile, the higher the risk of trapped air beneath the surface.

2. Working with Gauged Porcelain Tile Panels

GPTP installations demand full-contact mortar coverage. Vibration tools make it possible to eliminate voids without damaging the delicate panel surface.

3. Using Modern Thinset Mortars

Many high-performance mortars are stiffer and harder to spread than older formulations. A vibration tool helps spread the mortar evenly while keeping the tile aligned.

4. Tiling Over Heated Floors

Full contact between tile and subfloor is essential for thermal transfer. Any air gap reduces heating efficiency. A vibration tool ensures better contact for maximum heat distribution.

5. High-Traffic Commercial Areas

Hollow tiles in high-traffic zones (like airports or hospitals) often lead to early failure. Vibration tools improve durability and reduce callbacks.

Benefits of Using a Tile Vibration Tool

• Increased Bond Strength: Vibrating tiles into the mortar improves wetting and adhesion.

• Reduced Risk of Lippage: Vibration levels tiles across surfaces, improving finish quality.

• Faster & More Consistent Installs: Less manual tamping and fewer errors.

• Cleaner Results: No hollow sounds or surprises after curing.

• Peace of Mind: Helps meet ANSI A108.5 standards for mortar coverage (80% minimum for interior, 95% for exteriors and wet areas).

Tile Vibration Tool vs. Manual Beating Block

Installers have long used rubber mallets or beating blocks to press tiles into thinset. While this is still effective for small tile formats, vibration tools offer:

Recommended Tile Vibration Tools

At Tile ProSource, we carry industry-trusted vibrating suction cups engineered for today’s advanced tile systems.

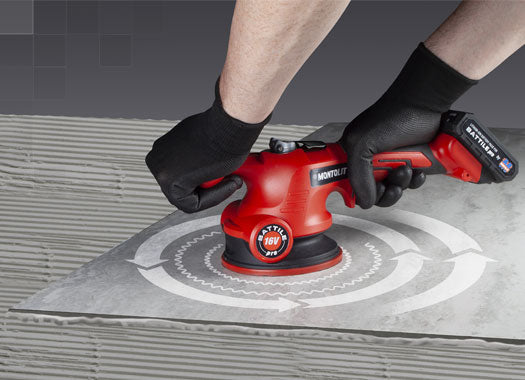

Montolit BATTILE-PRO Vibrating Suction Cup

• Adjustable vibration speed

• 44 lb. lifting capacity

• Includes carrying case and charger

• Ideal for large tile and GPTP installs

Bihui Tools CVT Vibration Tile Beater & Suction Cup

An advanced tile vibration tool built for high-performance installs, the Bihui CVT offers both power and precision for modern tiling demands.

Key Features:

• Adjustable vibration speed settings for different tile sizes and materials

• Large suction pad with secure grip for safe tile handling

• Rechargeable lithium-ion battery with digital display for vibration intensity and battery life

• Excellent for use on large-format tiles, gauged porcelain panels, and high-end tile applications

A reliable choice for professionals who demand accuracy, speed, and ergonomic efficiency.

Tips for Using a Tile Vibration Tool

• Start with a clean tile back and properly notched thinset

• Place the tile using suction cups and align carefully

• Activate vibration slowly, moving from center outward

• Use consistent pressure to avoid over-vibration

• Clean the tool head frequently to maintain suction power

Bonus tip: Use in conjunction with leveling systems for lippage-free installations.

Frequently Asked Questions

Can I use a tile vibration tool on natural stone?

Yes, but use low vibration settings to prevent cracking. Always check the stone’s density and fragility.

Do I still need to back-butter the tile?

For large-format and GPTP tiles, yes. Vibration tools are not a substitute for proper troweling techniques but an enhancement.

Will a vibration tool work with any tile size?

They’re best suited for tiles 12"x24" and larger. For small tiles or mosaics, manual setting is still preferred.

So, Do You Need a Tile Vibration Tool?

If you work with modern tile materials, especially porcelain slabs, large formats, or heated flooring systems, a tile vibration tool is not a luxury. It’s a must-have.

The investment pays off through:

• Fewer installation failures

• Better finish quality

• Faster workflows

• Happier clients

Whether you're a seasoned contractor, tools like the Montolit BATTILE-PRO and Bihui Tools CVT Vibration Tile Beater & Suction Cup Plus will transform the way you install tile.
