BIHUI Trade Pro Manual Cutting System Kit

by BIHUI
SKU LFMC5KIT
$609.00 - $609.00
$609.00
$609.00 - $609.00
$609.00

Score and snap big porcelain panels — no bridge saw required. The BIHUI Trade Pro Manual Cutting System (LFMC5KIT) is purpose-built for thin-gauge panels from 4–12 mm, handling sheets up to 126" with a deep-scoring trolley that glides the full length for clean, predictable breaks. Suction cups and F-clamps hold delicate panels without marking them, and the rail platform upgrades to BIHUI's electric cutters later.

More Details

A manual scoring-and-snapping system for thin-gauge porcelain panels — for wall cladding, shower panels, fireplace surrounds, countertops, and large architectural surfaces.

  • Model: LFMC5KIT
  • Designed for: Thin-gauge porcelain panels, 4–12 mm thick (not for thick, rigid, or standard field tile)
  • Panel length: Handles sheets up to 3.2 m (126")
  • Scoring: Trolley-mounted carbide scoring wheel glides the rails for deep, consistent full-length score lines

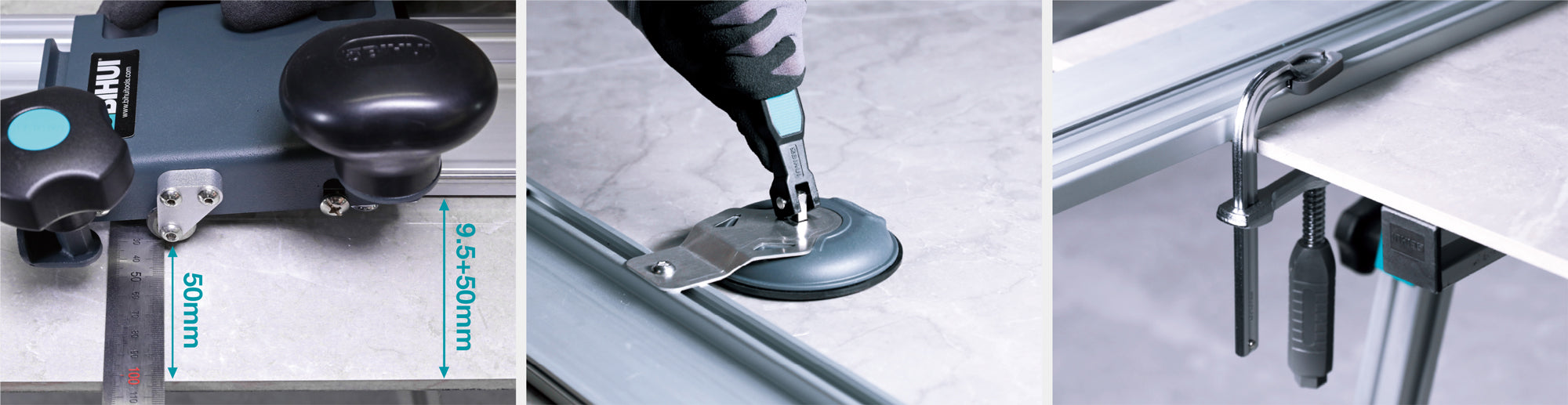

  • Panel protection: Aluminum suction cups and F-clamps secure rails without surface damage; a breaking clamp finishes clean snaps
  • Upgrade-ready: Rail platform is shared with BIHUI's electric panel cutters (note: these rails are not compatible with the LFECA Electric Cutting Machine)
  • Transport: Protective hard case for the trolley and pliers, plus a carrying bag for the rails (ships in 2 boxes: LFMC5 & LFRS5)
What's Included

Includes:

  • 2 x Rail, 55"
  • 1 x Rail, 31.5"
  • 1 x Cutting head with carbide scoring wheel (assembled)
  • 1 x Spare scoring wheel (boxed)
  • 4 x Aluminum fixing suction cups
  • 2 x F-clamps for fixing the rail
  • 1 x Breaking clamp
  • 1 x Plastic hard case
  • 1 x Storage tool bag
Shipping & Return Policies

Shipping Policy

Refund & Return Policy

BIHUI Trade Pro Manual Cutting System Kit — Score and Snap Big Panels, No Power Needed

Thin-gauge porcelain panels are awkward, expensive, and unforgiving — and a wet saw means water, cords, and mess on a finish jobsite. The BIHUI Trade Pro (model LFMC5KIT) lets you score and snap panels cleanly by hand instead. It's built specifically for thin-gauge porcelain from 4–12 mm and handles sheets up to 3.2 m (126"), so you can cut wall cladding, shower panels, fireplace surrounds, countertops, and big architectural surfaces right where they're going.

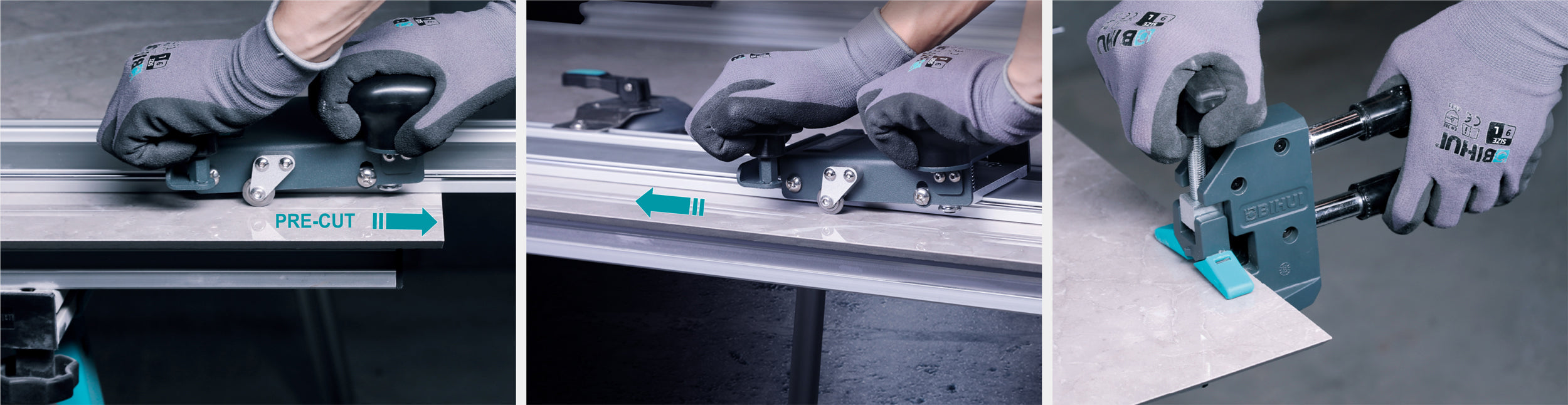

A trolley-mounted carbide scoring wheel rides the rail for a straight, consistent score, then the system's snapping mechanism breaks the panel clean along the line. It's a complete kit ready to work, and it expands with the rest of the Trade Pro line — add extra rails for longer panels, the trolley kit, and the carrier system for transport. (Built for thin-gauge panels — not thick, rigid, or standard field tile.)

Why Tile Pros Choose It

  • No power, no water: Score and snap big panels by hand on any jobsite
  • Built for thin panels: Thin-gauge porcelain 4–12 mm thick
  • Big capacity: Handles sheets up to 3.2 m (126")
  • Straight scores: Trolley-mounted carbide wheel rides the rail
  • Clean breaks: Integrated snapping mechanism along the score line
  • Expandable system: Add rails, trolley, and carrier as you need them

Pro tip: Support the panel fully and flat, and make one smooth, continuous scoring pass — stopping mid-score leaves a witness mark that throws the break. Know the system's limits: it's for thin-gauge panels, not thick or rigid field tile.
