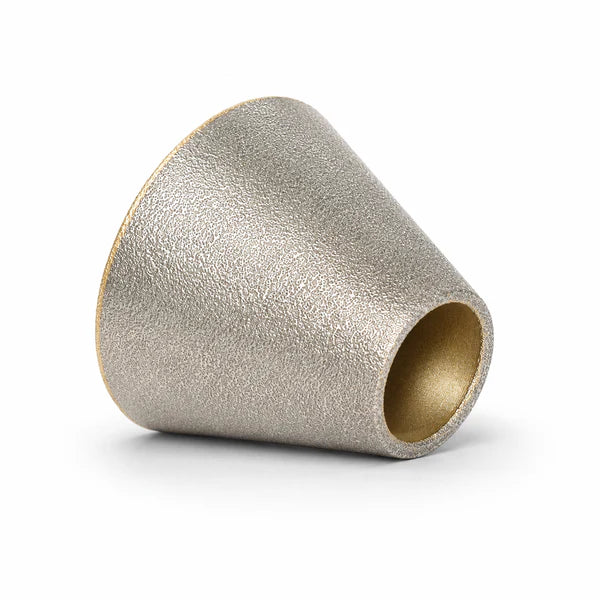

Crowne Tools Diamond Chamfer Cone "Big Boy" (35-75mm)

SKU BBCC-BIGBOY-S
Original price $95.00 - Original price $95.00
Original price
$95.00
$95.00 - $95.00
Current price $95.00
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

One cone that opens up, shapes, and bevels big holes in the hardest tile and stone. The Crowne "Big Boy" is a tapered 35–75mm diamond chamfer cone for your angle grinder — enlarge a cut-out for a faucet, mixer, drain, or toilet flange, bevel the exposed edge clean, and shape inside radius corners, all with one tool. Runs wet or dry on porcelain, ceramic, granite, marble, and stone.

More Details

The Crowne "Big Boy" Diamond Chamfer Cone shapes, enlarges, and bevels large holes in hard materials with a single tapered cone. Verified from Crowne Tools:

  • Range: Tapered 35mm to 75mm in one cone
  • Uses: Enlarging holes, beveling and chamfering exposed hole edges, shaping, trimming, and carving rounded indentations for pipe and wire runs
  • Inside corners: Excels at clean inside radius corners
  • Applications: Cut-outs for faucets, mixers, drains, toilet flanges, and shower valves
  • Materials: Porcelain, hard ceramics, granite, marble, and stone
  • Coating: High-grade diamond coating for long-lasting performance
  • Use: Wet or dry

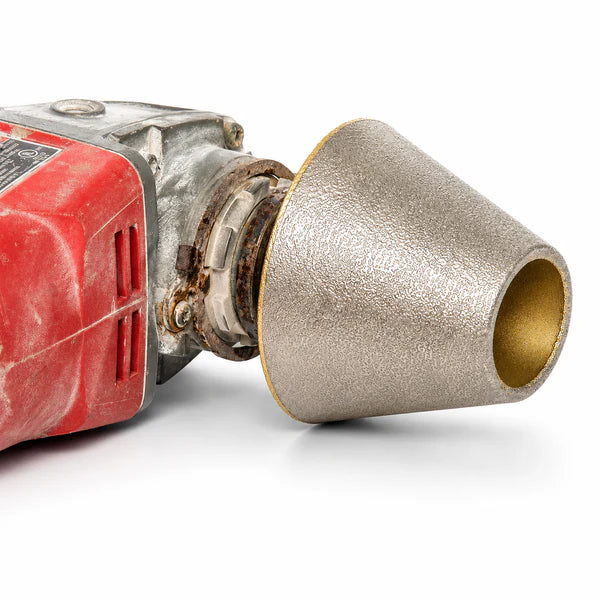

  • Mount: Threads onto a standard angle grinder
  • Brand: Crowne Tools — For Pros By Pros
Shipping & Return Policies

Crowne "Big Boy" Diamond Chamfer Cone (35-75mm) — Open It Up, Bevel It Clean, One Cone

The hole is almost never exactly right the first time. The core bit gave you 50mm and the drain needs 60. The faucet cut-out is drilled, but the exposed edge is raw and chipped. And enlarging or cleaning up a hole in porcelain or granite by hand is slow, imprecise, and one slip from a cracked tile. The Crowne "Big Boy" Diamond Chamfer Cone is built to make that job fast, controlled, and clean.

It's a tapered diamond cone spanning 35mm to 75mm, so a single tool covers a huge range of hole sizes. Sink it into an existing hole to open it up to the exact diameter you need, roll it around the rim to bevel and chamfer a clean, finished edge, and use the taper to shape inside radius corners or carve the rounded indentations that let a pipe or wire line sit flush. The high-grade diamond coating powers through porcelain, hard ceramics, granite, marble, and stone — the materials that dull or defeat lesser tools.

Think of it as the finishing half of the hole-making workflow: drill the hole first — a guide like the Crowne Tile BullsEye keeps that start clean and on-mark — then reach for the Big Boy to size it, bevel it, and refine it. It runs wet or dry and threads onto a standard angle grinder. Crowne builds it "for pros by pros," and you feel it in how much hand-filing (and cursing) it eliminates.

Why Tile Pros Choose It

  • One cone, 35–75mm: A huge range of hole sizes in a single tool
  • Enlarge and bevel: Open up holes and finish the exposed edge clean
  • Shapes and carves: Inside radius corners and rounded pipe/wire indentations
  • Built for hard materials: Porcelain, hard ceramics, granite, marble, and stone
  • High-grade diamond coating: Long life under real jobsite use
  • Wet or dry: Run it however the job calls for
  • Turns "close enough" holes into exactly-right ones: Which is the whole difference on a finished wall

Pro tip: Let the diamond do the work with light, steady pressure and keep the cone moving — leaning on it or dwelling in one spot builds heat and can chip the glaze. Sneak up on your final diameter rather than forcing it in one pass, and keep water at the contact point when running wet (or pause to let it cool when running dry).
