Illuminiche 24V60W Tile-Ready LED Niche Kits

Illuminiche 24V60W Tile-Ready LED Niche Kits

by Illuminiche
SKU IN1313K-2700K
$435.00 - $1,084.00
$435.00
$435.00 - $1,084.00
$435.00

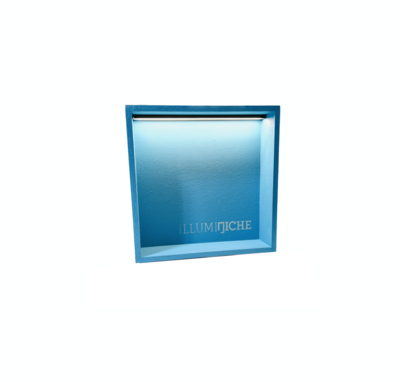

Size: 13" × 13" Kit
Color Temperature: 2700K (Warm White)

The first tile-ready, pre-lit LED shower niche you can actually service. A patented magnetic light channel lifts out from the front for service or replacement without disturbing a single tile — a fully waterproof, 24V niche with even, dimmable COB lighting in your choice of three color temperatures. Ships as a complete kit with the all-in-one INSWITCHII driver and plug-and-play wiring.

More Details

The complete 24V/60W tile-ready niche system — niche, serviceable magnetic LED channel, and all-in-one driver in one kit. Verified specs from Illuminiche:

  • Serviceable design: Patented magnetic coupling — the COB LED channel lifts out from the front for service or replacement with no tile removal (tile is set with a 1/16" gap around the channel so it releases cleanly)
  • Waterproof, wet-rated: Built from 1/2" high-density foam with a factory waterproof coating; IP67-rated and certified for showers and wet areas, mold- and mildew-resistant
  • Light quality: Cut-anywhere COB LEDs deliver even, hot-spot-free light; rated up to 100,000 hours

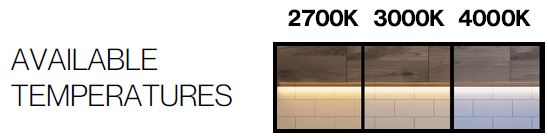

  • Color temperatures: 2700K warm, 3000K soft white, or 4000K neutral white
  • 24V system: Includes the INSWITCHII 24V 60W all-in-one dimmer/driver that installs in a standard wall switch box — no remote driver
  • Wiring: UL-listed 22/2 low-voltage wire with an IP67 quick-connect harness — color-coded, no soldering
  • Fits standard framing: Slim 3.5" depth for 2×4 walls
  • Tile-ready and compatible: Tile over with ceramic, porcelain, stone, or glass; works with Schluter, Wedi, and other tile-board systems

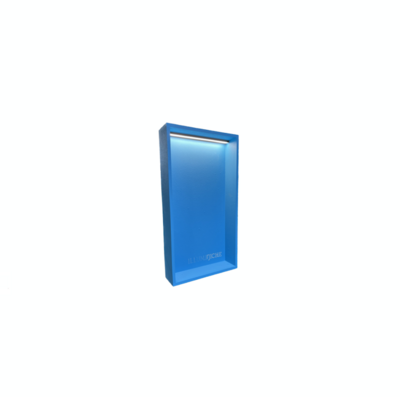

  • Sizes: 13×13, 13×25, 13×49, 25×13, and 49×13, with optional adjustable LED shelf configurations
  • Made in USA; warranty requires use of the Illuminiche INSWITCHII switch
  • Note: Not recommended for steam showers unless the IP68-rated LED option is used
What's Included

Every kit includes:

  • Waterproof, tile-ready LED niche (1/2" high-density foam with factory waterproof coating, IP67)
  • Removable magnetic-coupling COB LED light channel (cut-anywhere, serviceable from the front)
  • INSWITCHII 24V 60W all-in-one dimmer/driver (installs in a standard wall switch box)
  • UL-listed 22/2 low-voltage wire with IP67 quick-connect harness

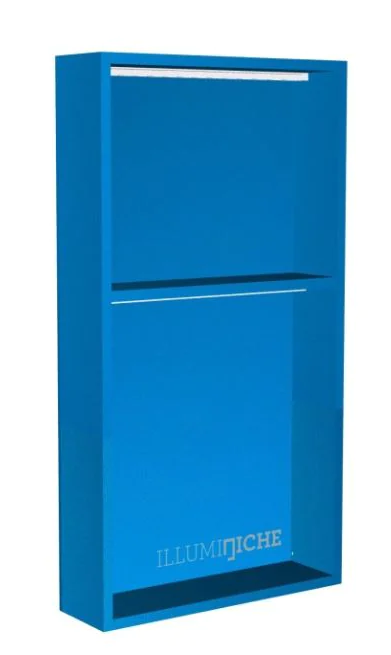

  • "+ Shelf" kits also include an adjustable LED shelf (13" × 25" + Shelf: one shelf; 13" × 49" + Shelf: two shelves)

Available in 2700K, 3000K, and 4000K. INSWITCHII face plates are offered separately in black, brown, gray, and light almond.

Shipping & Return Policies

Shipping Policy

Refund & Return Policy

Illuminiche 24V60W Tile-Ready LED Niche Kits — Built-In Shower Lighting You Can Actually Service

Built-in niche lighting looks incredible — right up until the day the LED fails behind the tile and the only fix is demoing the wall. Illuminiche is the original tile-ready, pre-lit LED niche engineered to kill that risk. A patented magnetic coupling lets the COB LED channel lift straight out from the front for service or replacement — no tools, no tile removal, no demolition — so you get the high-end integrated glow without the tear-out waiting down the road.

It ships as a complete 24-volt system. The included INSWITCHII 24V 60W dimmer/driver is an all-in-one unit that installs in a standard wall switch box, so there's no remote driver buried in an attic, and it handles power, on/off, and smooth dimming from one device (choose a face-plate color to match the room). UL-listed 22/2 low-voltage wire with an IP67 color-coded quick-connect harness ties the niche to the driver with no soldering. The light itself comes from cut-anywhere COB LEDs that give an even, hot-spot-free glow rated up to 100,000 hours, in your choice of three color temperatures — 2700K warm, 3000K soft white, or 4000K neutral white.

Underneath the good looks, it's built for the wall it lives in: a waterproof body of 1/2" high-density foam with a factory waterproof coating, IP67-rated and certified for wet areas. The tile-ready surface tiles over cleanly with ceramic, porcelain, stone, or glass, the slim 3.5" depth drops into standard 2×4 framing, and it works with the waterproofing systems you already run, including Schluter and Wedi. The install detail that makes serviceability possible is simple: tile is set with a precise 1/16" gap around the channel — free of thinset and grout — so the channel can be released anytime. It's made in the USA, comes in sizes from 13×13 up to 49×13 with adjustable-shelf options, and its warranty runs on the included INSWITCHII switch.

Complete the system: extend the glow beyond the niche with matching dry-area (IP20) and wet-area (IP67) LED light channels, add a 13" LED shelf, or pull extra low-voltage wire with the IP67 harness for longer runs. Supplying your own 24V driver or running a junction-box setup? Choose the no-switch niche instead.

Why Tile Pros Choose It

  • Serviceable from the front: Magnetic channel lifts out with zero tile tear-out
  • Complete kit: Niche, LED channel, INSWITCHII 24V driver, and wiring in one box
  • All-in-one power: INSWITCHII driver and dimmer mount in a standard switch box
  • Even, premium light: Cut-anywhere COB LEDs, no hot spots, up to 100,000 hours
  • Three color temperatures: 2700K, 3000K, and 4000K
  • Wet-area rated: Waterproof high-density foam body, IP67, certified for showers
  • Fits standard framing: Slim 3.5" depth for 2×4 walls; Schluter and Wedi compatible
  • Made in USA, and future-you says thanks: No demo party when a light eventually needs swapping

Pro tip: Plan the niche in at framing and run the low-voltage wire to the switch box before you tile. Set your tile with the 1/16" gap around the channel — no thinset or grout in that gap — so it stays serviceable, and match the color temperature to the room's other lighting. For steam showers, ask about the IP68-rated LED option.
