Montolit Superlift Tile Handling System
Made with galvanized telescopic iron tubes, SUPERLIFT is able to maintain rigidity also under pressure of elastic and thinner slabs avoiding dangerous bending movement that can break the slab or damage the tiler. The slabs right before the installation can be lifted, twisted, switched in vertical, moved even in narrow places.

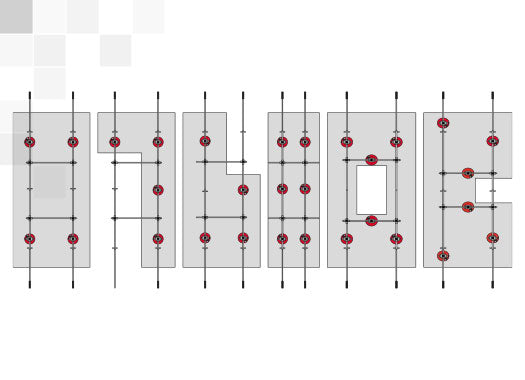

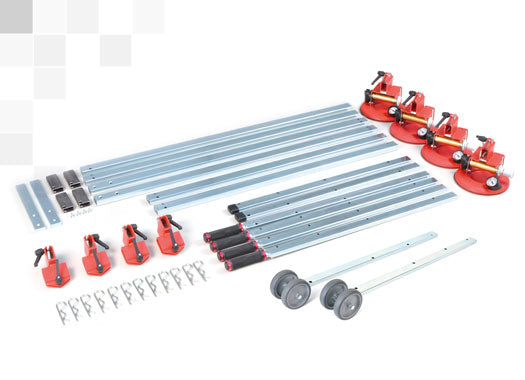

SUPERLIFT is easy to disassemble to make it lighter and compact during transport, it is completely modular in order to create several configurations depending of the slabs type and shape. In addition to the standard configurations with 4 suction cups, extra suction cups (Part # 300-71) can be added everywhere on the frame, for working on heavier tiles or fragile materials.
The suction cups are equipped with a double warning check through a pressure manometer and a red line indicator directly on the pump system. Made with a technical silicon based rubber that doesn't leaves color on the slab, they are easily movable in every position along the frame, based on the tiler's needs. The locking system that holds the suckers to the frame is efficient and intuitive, this make the procedure of moving and adjusting the suckers really fast, accurate and safe.
The handles at the end of the bars are made in ergonomic and anti-slipping rubber, they are also equipped with plastic supports on their back to hold up the entire structure and to easily lay the slab in vertical on the wall avoiding to scratch the floor.

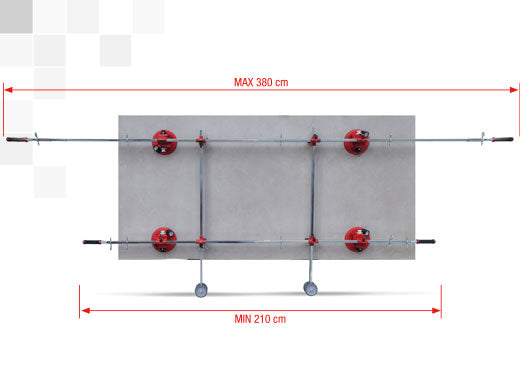

The telescopic handles system able the tiler to handle slabs up to 12'5" (380cm) length.
The included wheeled system support is an innovation in this field. Thanks to it, the operator can transport the slabs on the wheels without any fatigue, also the gluing is simplified. SUPERLIFT WITH WHEELED SYSTEM SUPPORT make this tool the ultimate kit for handling and lifting slabs.
