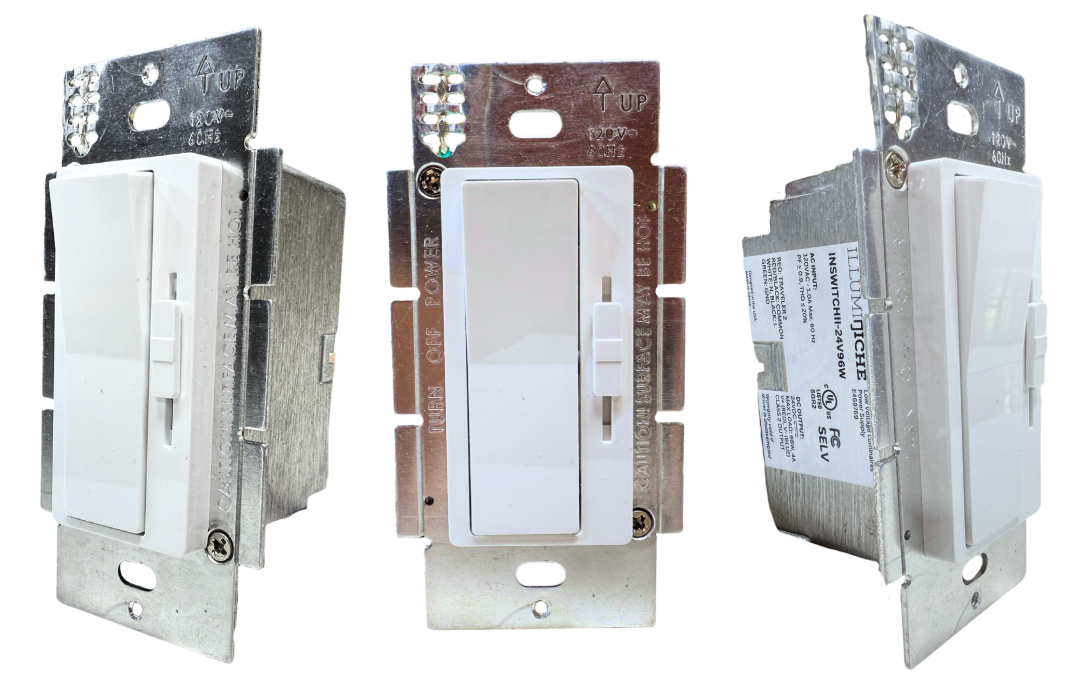

Illuminiche INSWITCHII 24V Dimmer/Driver Switch (Gen 2)

Illuminiche INSWITCHII 24V Dimmer/Driver Switch (Gen 2)

by Illuminiche
SKU INSWITCHII24V60W
$250.00 - $260.00
$250.00
$250.00 - $260.00
$250.00
Power: 60W

The all-in-one that replaces the hidden driver. The INSWITCHII combines a 24V LED driver, on/off, and smooth dimming in one unit that installs in a standard single-gang wall box — no remote driver in the attic, no compatibility guessing. It converts 120V AC to 24V DC, is UL Class 2, and works with the IP67 quick-connect harness. Choose 60W, or 96W for long runs and steam rooms.

More Details

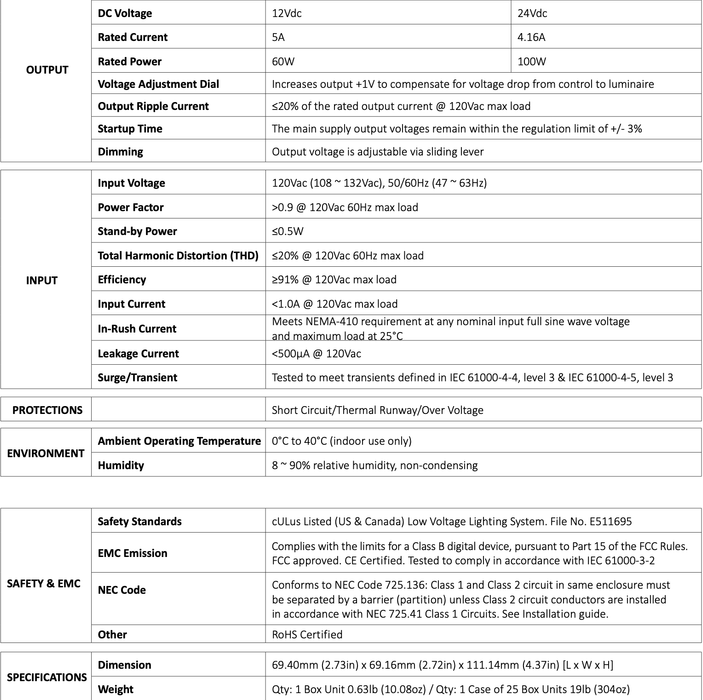

Illuminiche's flagship all-in-one 24V dimmer/driver (Gen 2) — the heart of the low-voltage system, combining driver, switch, and dimming in a standard wall box. Verified specs from Illuminiche:

  • All-in-one: 120V AC to 24V DC driver, on/off switch, and smooth dimming in a single device
  • Installs in a standard single-gang wall box: No remote or attic-mounted driver
  • Two capacities: 60W (powers roughly 16 linear ft of LED at 3.75 W/ft) or 96W for long runs and steam-room applications (roughly 25 ft)
  • Clean power: Delivers stable output to the COB LEDs
  • Connection: Works with the IP67-rated quick-connect harness — no soldering
  • Safety: UL Class 2; meets US electrical safety code for in-wall dimming and control
  • Compatible with 110V systems
  • Required for the Illuminiche warranty
  • Face plates sold separately (black, brown, gray, light almond)
Shipping & Return Policies

Shipping Policy

Refund & Return Policy

Illuminiche INSWITCHII 24V Dimmer/Driver Switch (Gen 2) — The Heart of the System, in One Wall Box

Traditional low-voltage niche lighting hides a remote driver in an attic, basement, or behind an access panel — extra wiring, extra failure points, and a compatibility guessing game between the driver and the switch. The INSWITCHII collapses all of that into a single device that installs in a standard single-gang wall box, combining the 24V driver, on/off, and smooth dimming in one.

It converts 120V AC to 24V DC and delivers clean, stable power to the COB LEDs. The 60W handles roughly 16 linear feet of LED, and the 96W steps up for long runs and steam-room applications (around 25 feet). It connects through the IP67 quick-connect harness with no soldering, it's UL Class 2 for safe in-wall dimming, and it's the component the Illuminiche warranty runs on. It powers the tile-ready niche kits and no-switch niches, along with the dry-area and wet-area LED light channels, and its face plate is chosen separately in four colors.

Why Tile Pros Choose It

  • All-in-one: Driver, switch, and dimmer in one unit
  • No hidden driver: Installs in a standard single-gang wall box
  • Sized to the run: 60W (~16 ft) or 96W (~25 ft, long runs and steam rooms)
  • Clean power: 120V AC to 24V DC, stable output to the COB LEDs
  • Solder-free: Connects via the IP67 quick-connect harness
  • Safe and to code: UL Class 2, 110V compatible
  • Warranty anchor: Required for Illuminiche coverage
  • The end of the attic scavenger hunt: Service is at the switch, not up a ladder

Pro tip: Size the driver to your total LED run — 60W for niches up to about 16 ft of channel, 96W for longer or combined runs and steam rooms. Put it on its own switch leg rather than downstream of a separate AC wall dimmer (that's what causes buzzing on combo units), add a face-plate color to match, and use the IP67 harness for a clean, solder-free connection.
