Rapid Recess Point Drain Bracket System

$479.00
SKU RRSF25

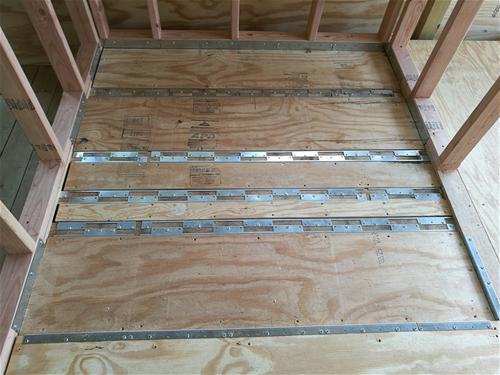

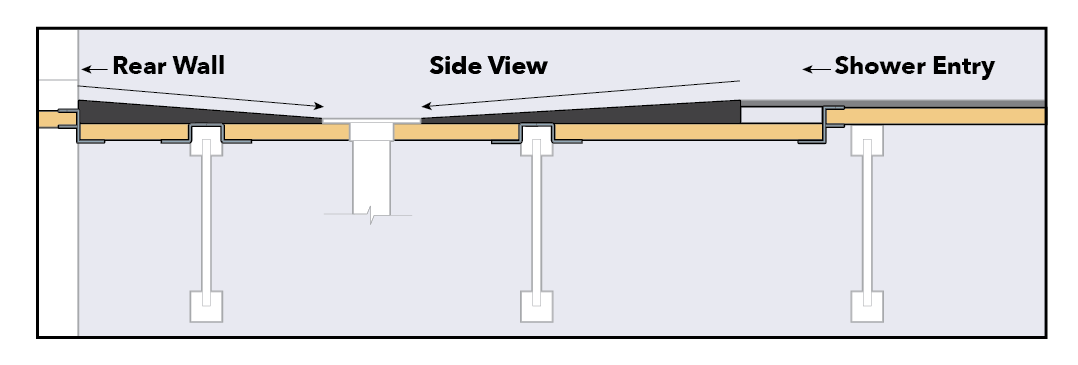

The Rapid Recess bracket system kits provide a solution to lowering the subfloor in preparation for a curbless tile shower without compromising the structural integrity of wood floor joists. Rapid Recess brackets were designed to work with most major tile shower systems currently on the market. Rapid Recess Kits are only suitable for showers that are 25 square feet or less.

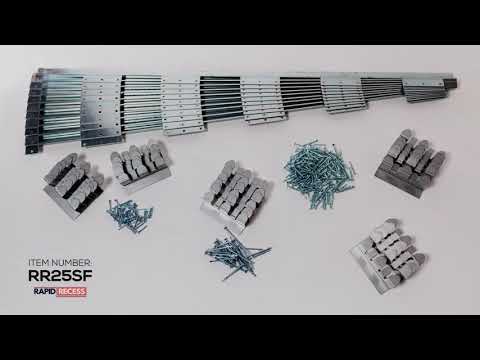

This kit includes:
M-Bracket - 47-3/8" long, fastened to the top of the floor joists (x10)
Z-Bracket - 5" long side bracket used for wall to recess and main floor to recess transitions (X30)
#10 2-3/4" wood to metal self-drilling screws with wings (x40)
#10 1-5/8" wood to metal self-drilling screws with wings (x160)
#8 x 1 1/4" flat head Phillips coarse thread, exterior rated, polymer coated screws (x60)

Rapid Recess Technical Support

techsupport@rapidrecess.com

970-852-0150



Rapid Recess Point Drain Installation Instructions for Joists Perpendicular to Shower Entry

Rapid Recess Point Drain Installation Instructions for Joists Parallel to Shower Entry

Rapid Recess Sell Sheet
